CPM-051
Welcome to contact us.

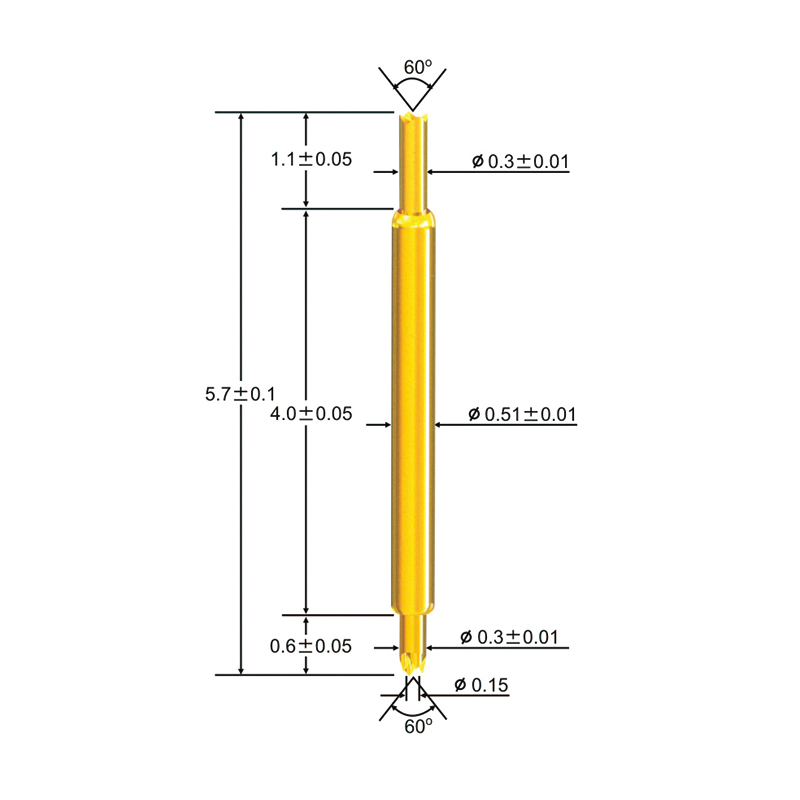

Unit : mm
| Materials and finishes | ||
| Plunger-Top | 頭針 | BeCu / Sk4 / Au Plated |
| Plunger-Bottom | 尾針 | BeCu / Au Plated |
| Barrel | 針管 | P.B. / Au Plated |
| Spring | 彈簧 | Music Wire / Au Plated |
| Mechanical | ||
| Spring Force | 彈力 | 25grams @0.65mm |
| Full Travel | 最大行程 | 1.0mm |
| Recommend Travel | 建議行程 | 0.65mm |
| Mechanical Life | 使用壽命 | 500K |
| Bandwidth | 頻寬 | -0.292dB@20GHz |
| Electrical | ||
| Current Rating | 額定電流 | 2A |
| Contact Resistance | 接觸電阻 | <100mΩ |
Materials and Finishes: The probe consists of a BeCu/Sk4/Au-plated top plunger, a BeCu/Au-plated bottom plunger, a P.B./Au-plated barrel, and a Music Wire/Au-plated spring. These materials and finishes ensure optimal conductivity and durability.

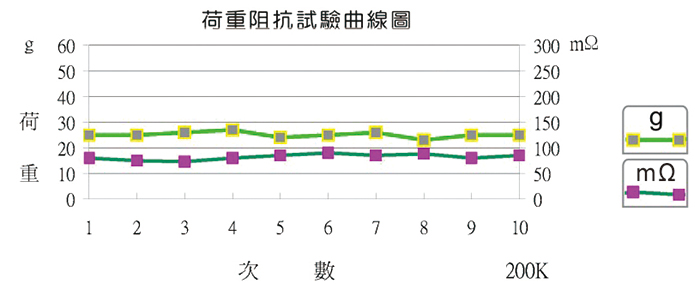

Mechanical Features: With a spring force of 25 grams at 0.65mm, the probe guarantees reliable contact for accurate measurements. It offers a full travel of 1.0mm, allowing flexibility in testing setups. The recommended travel of 0.65mm ensures precise testing capabilities. The probe boasts an impressive mechanical life of 500K cycles, ensuring long-lasting performance.

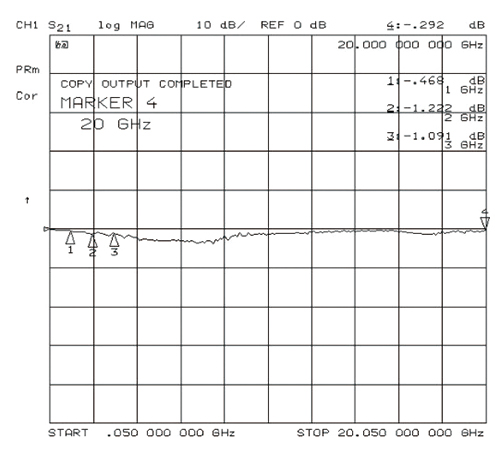

Bandwidth and Electrical Specifications: The probe exhibits a bandwidth of -0.292dB at 20GHz, making it suitable for high-frequency applications. Its electrical properties include a current rating of 2A, allowing for efficient power delivery, and a contact resistance below 100mΩ, ensuring minimal interference.
