CPM-066
Welcome to contact us.

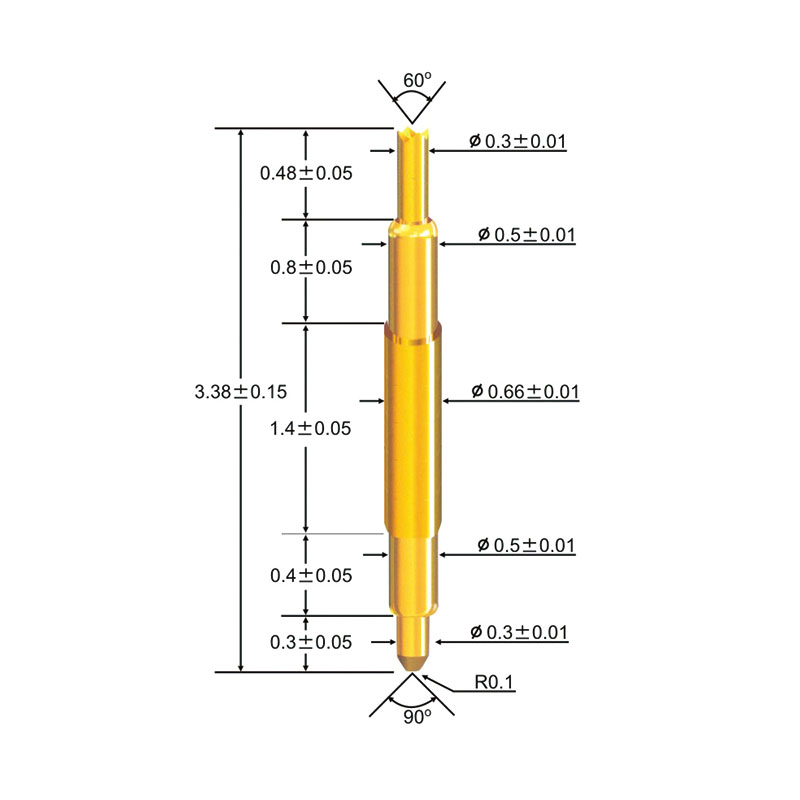

Unit : mm
| Materials and finishes | ||
| Plunger-Top | BeCu / Au Plated | |
| Plunger-Bottom | BeCu / Au Plated | |
| Barrel | P.B. / Au Plated | |
| Spring | Music Wire / Au Plated | |
| Mechanical | ||
| Spring Force | 28grams @0.5mm | |
| Full Travel | 0.78mm | |
| Recommend Travel | 0.5mm | |
| Mechanical Life | 500K | |
| Bandwidth | -0.298dB@20GHz | |
| Electrical | ||
| Current Rating | 2A | |
| Contact Resistance | <100mΩ | |
Materials and Finishes: The probe features a BeCu/Au-plated top plunger, a BeCu/Au-plated bottom plunger, a P.B./Au-plated barrel, and a Music Wire/Au-plated spring. These materials and finishes are carefully selected to provide excellent conductivity and durability, ensuring accurate and consistent test results.

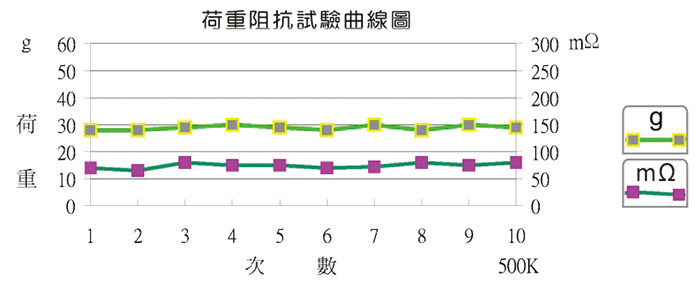

Mechanical Features: With a spring force of 28 grams at 0.5mm, the probe exerts the right amount of pressure for precise contact during testing. It offers a full travel of 0.78mm, allowing for flexibility in test setups. The recommended travel of 0.5mm ensures optimal performance and reliable measurements. With a mechanical life of 500K cycles, this probe is built to withstand long-term use without compromising its performance.

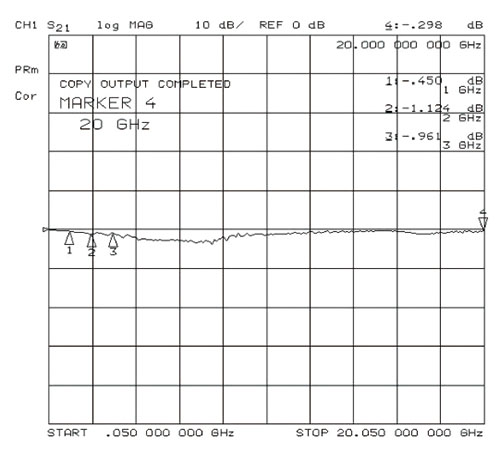

Bandwidth and Electrical Specifications: The probe boasts a bandwidth of -0.298dB at 20GHz, making it suitable for high-frequency applications. Its electrical properties include a current rating of 2A, enabling efficient power delivery for accurate testing. With a contact resistance below 100mΩ, it ensures minimal signal loss and interference, contributing to reliable test results.
