CPM-075
Welcome to contact us.

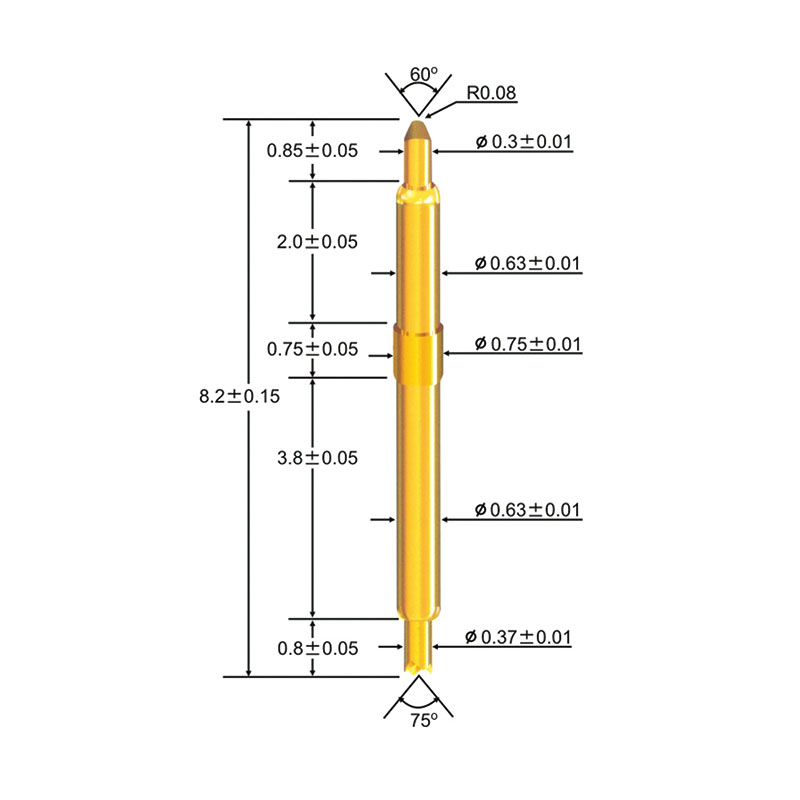

Unit : mm
| Materials and finishes | ||
| Plunger-Top | BeCu / Au Plated | |
| Plunger-Bottom | BeCu / Au Plated | |
| Barrel | P.B. / Au Plated | |
| Spring | Music Wire / Au Plated | |
| Mechanical | ||
| Spring Force | 23grams @0.65mm | |
| Full Travel | 1.0mm | |
| Recommend Travel | 0.65mm | |

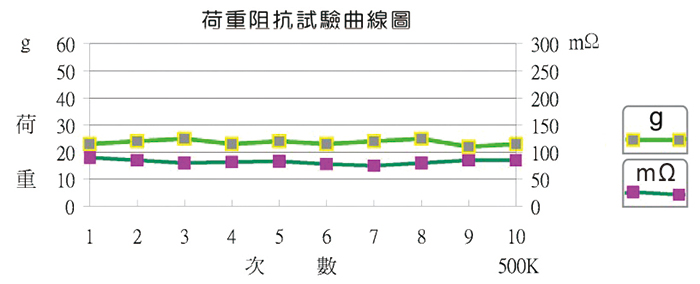

| Mechanical Life | 500K | |

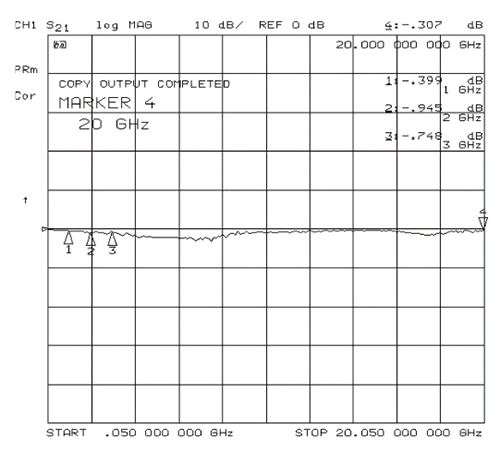

| Bandwidth | -0.307dB@20GHz | |
| Electrical | ||
| Current Rating | 2A | |
| Contact Resistance | <100mΩ | |
Materials and Finishes: The probe features a BeCu/Au-plated top plunger, a BeCu/Au-plated bottom plunger, a P.B./Au-plated barrel, and a Music Wire/Au-plated spring. These materials and finishes are carefully chosen to ensure excellent conductivity, corrosion resistance, and longevity, allowing for accurate and consistent test results.
Mechanical Features: With a spring force of 23 grams at 0.65mm, the probe provides the ideal amount of pressure for precise contact during testing. It offers a full travel of 1.0mm, allowing for ample room to accommodate various test setups. The recommended travel of 0.65mm ensures optimal performance and reliable measurements. With a mechanical life of 500K cycles, this probe is built to withstand extensive use without compromising its mechanical integrity.
Bandwidth and Electrical Specifications: The probe boasts a bandwidth of -0.307dB at 20GHz, making it suitable for high-frequency applications. Its electrical properties include a current rating of 2A, enabling efficient power delivery for accurate testing. With a contact resistance below 100mΩ, it minimizes signal loss and ensures reliable electrical connections.
