CPM-100
Welcome to contact us.

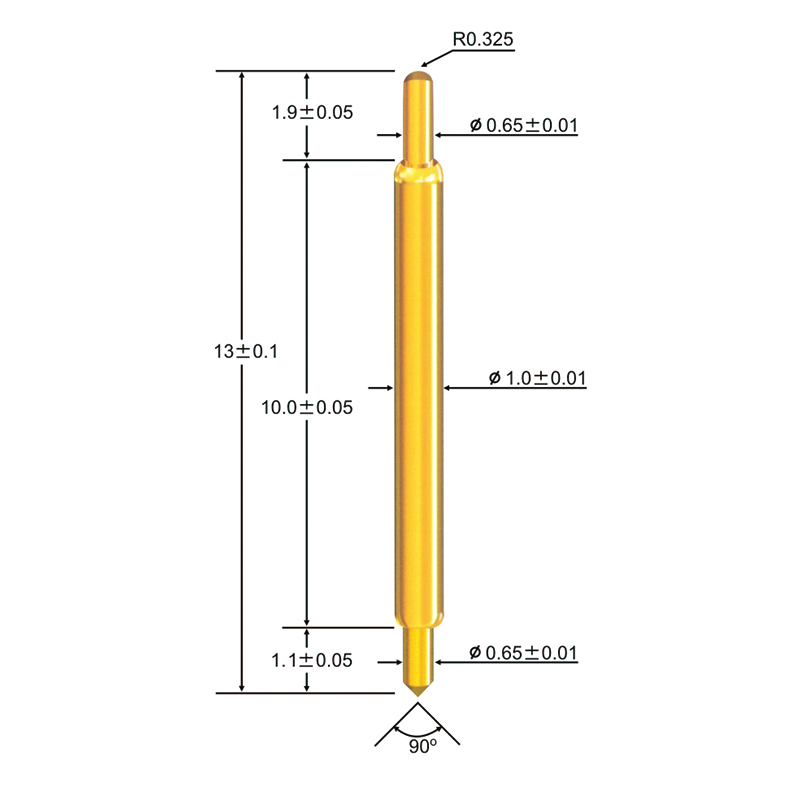

Unit : mm
| Materials and finishes | ||
| Plunger-Top | BeCu / Au Plated | |
| Plunger-Bottom | BeCu / Au Plated | |
| Barrel | Brass / Au Plated | |
| Spring | Music Wire / Au Plated | |
| Mechanical | ||
| Spring Force | 70grams @1.9mm | |
| Full Travel | 3.1mm | |
| Recommend Travel | 1.9mm | |

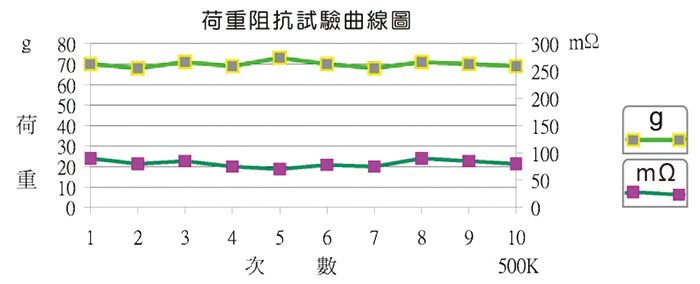

| Mechanical Life | 500K | |

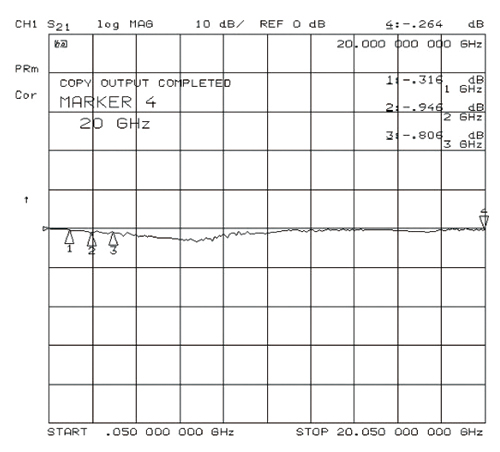

| Bandwidth | -0.26dB@20GHz | |
| Electrical | ||
| Current Rating | 2A | |
| Contact Resistance | <100mΩ | |
Materials and Finishes:
The Semiconductor Test Probe is crafted using top-quality materials to ensure optimal performance. Both the plunger-top and plunger-bottom are made of BeCu (Beryllium Copper) and coated with a high-grade Au (gold) plating. The barrel is constructed from Brass and also features an Au plating for enhanced conductivity and durability. The spring, composed of Music Wire, is plated with Au to provide excellent electrical properties and resistance against corrosion.
Mechanical Precision:
This probe excels in mechanical precision, making it ideal for a wide range of semiconductor testing applications. With a spring force of 70 grams at 1.9mm, it ensures secure and reliable contact. The full travel distance of 3.1mm allows for versatile testing requirements, while the recommended travel distance of 1.9mm guarantees optimal performance. With a mechanical life of 500K cycles, this probe is built to withstand repeated use and maintain consistent results.
Impressive Bandwidth and Electrical Specifications:
The Semiconductor Test Probe delivers exceptional electrical performance. It boasts an impressive bandwidth of -0.26dB at 20GHz, ensuring accurate and reliable signal transmission at high frequencies. With a current rating of 2A, it can handle demanding power requirements, making it suitable for a wide range of semiconductor devices. The contact resistance remains below 100mΩ, minimizing signal loss and ensuring precise measurements.
